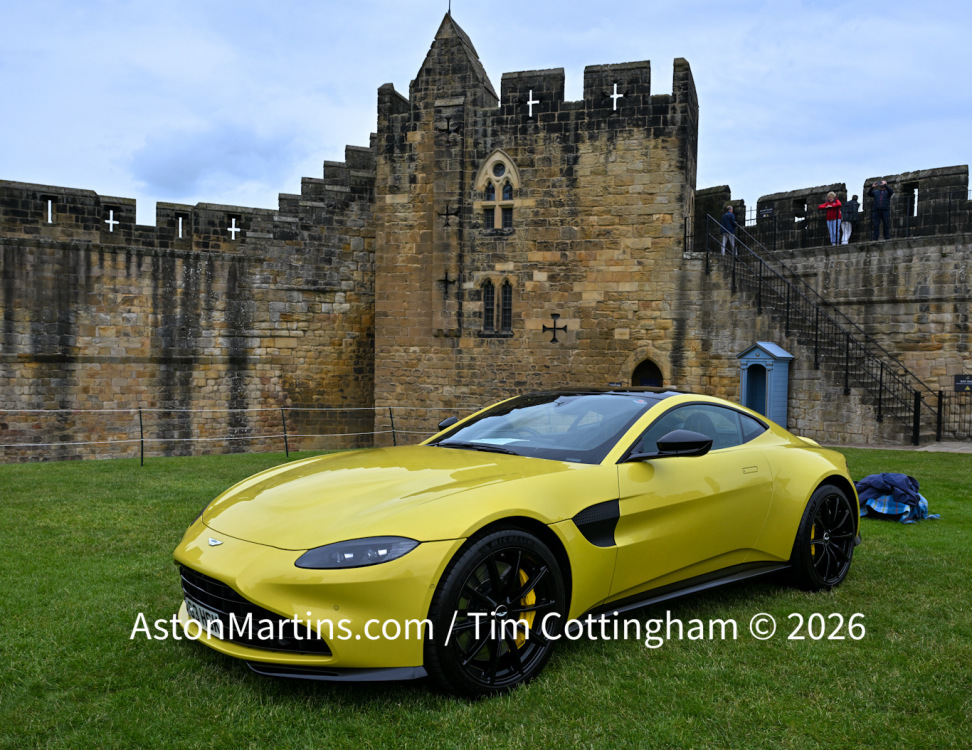

‘New’ Vantage
‘New’ Vantage

‘New’ Vantage

(2017 - date)

‘New’ Vantage
  • Body/Coachwork:
    • Two-door body style 2+0 seating
    • Extruded bonded aluminium body structure with steel panels

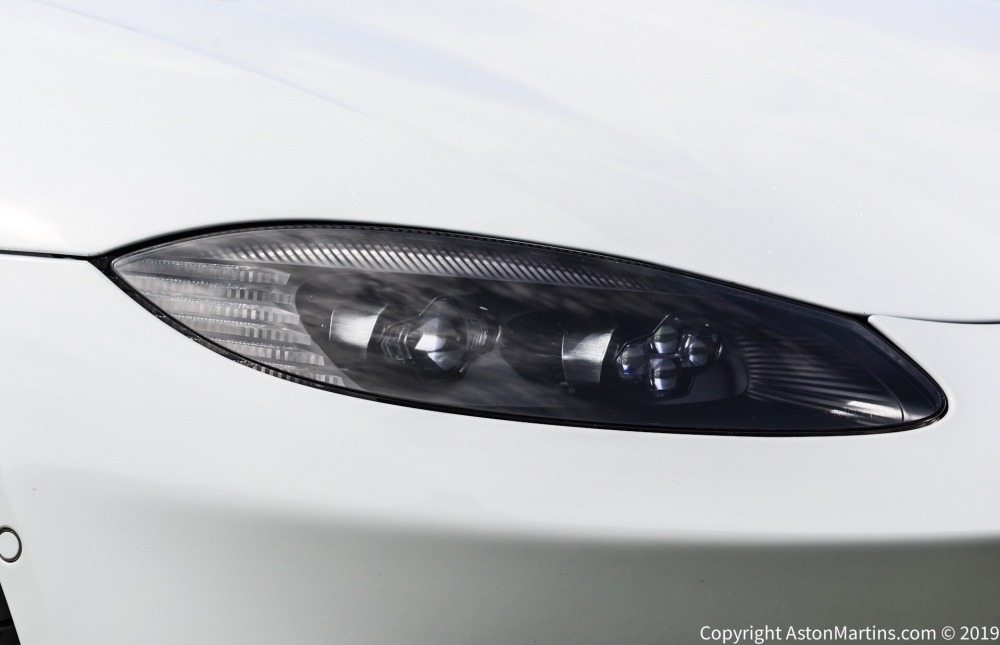

    • LED high & and low beam headlamps with integrated direction indicator, daytime running lights, position lamp, lock/unlock graphic theatre

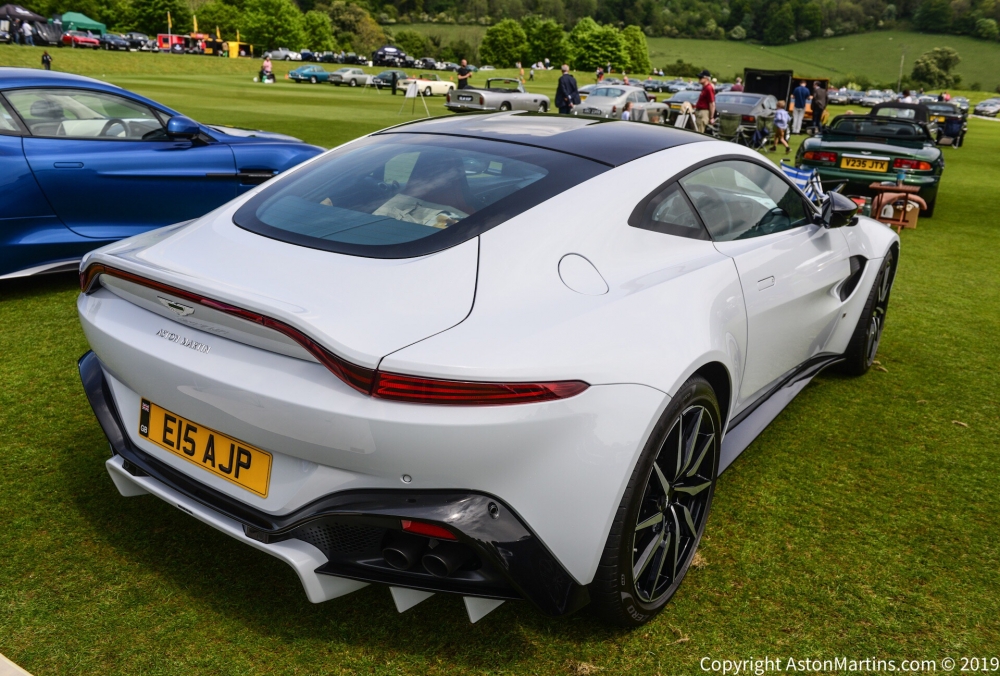

    • Signature full width LED tail lamp with stop tail and dynamic indicator functions
    • Clamshell bonnet

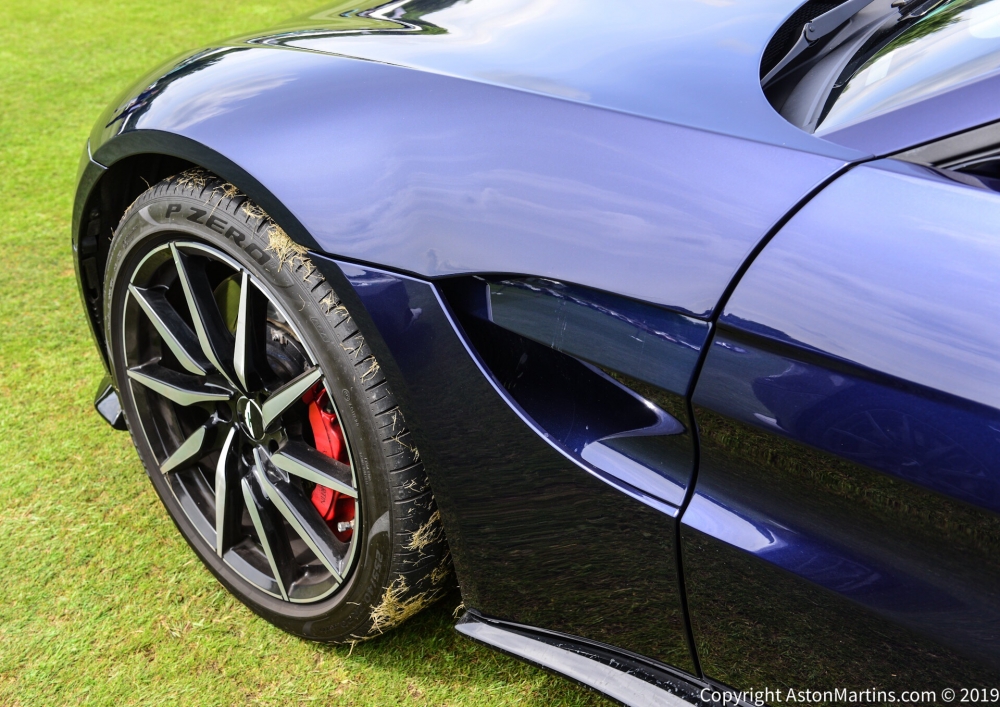

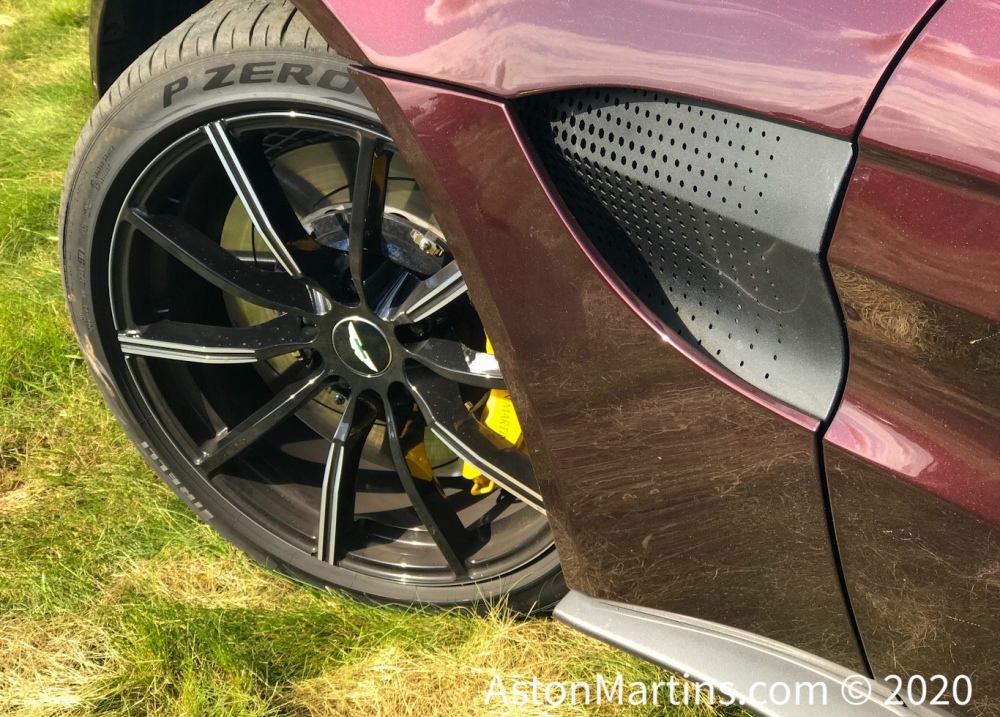

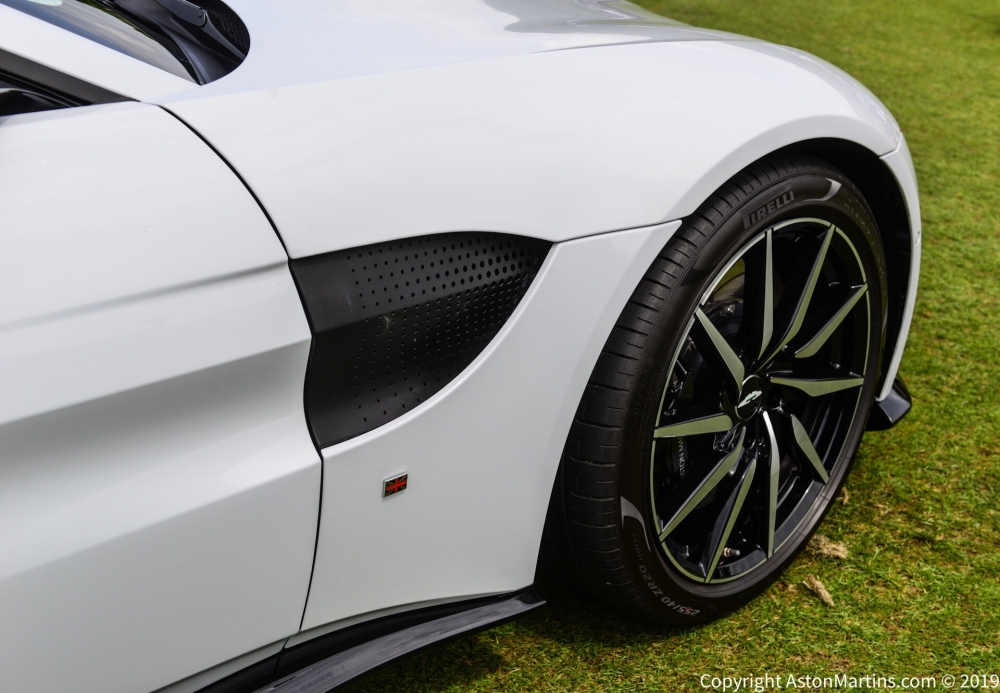

    • Side gill



  • Engine:
    • All-alloy quad overhead cam, 4.0 litre twin turbo V8 by AMG
    • Water-to-Air charge cooling
    • Front mid-mounted engine, rear wheel drive
    • Compression ratio 10.5:1
    • Fully catalysed stainless steel exhaust system
    • Electronically controlled exhaust
    • Dual Variable Camshaft Timing
    • Fully CNC machined combustion chambers
    • Maximum power: 510ps / 503bhp at 6000rpm
    • Maximum torque: 685Nm from 2000-5000rpm



  • Transmission:
    • Rear mid-mounted ZF eight-speed automatic transmission
    • Alloy torque tube with Carbon Fibre propeller shaft
    • Electronic differential (E-Diff)
    • Final drive ratio 2.93:1



  • Steering:
    • Electric power assisted steering rack  with 13.09:1 steering ratio
    • Speed-dependent rack and pinion power-assisted steering, 2.4 turns lock-to-lock



  • Wheels and tyres:

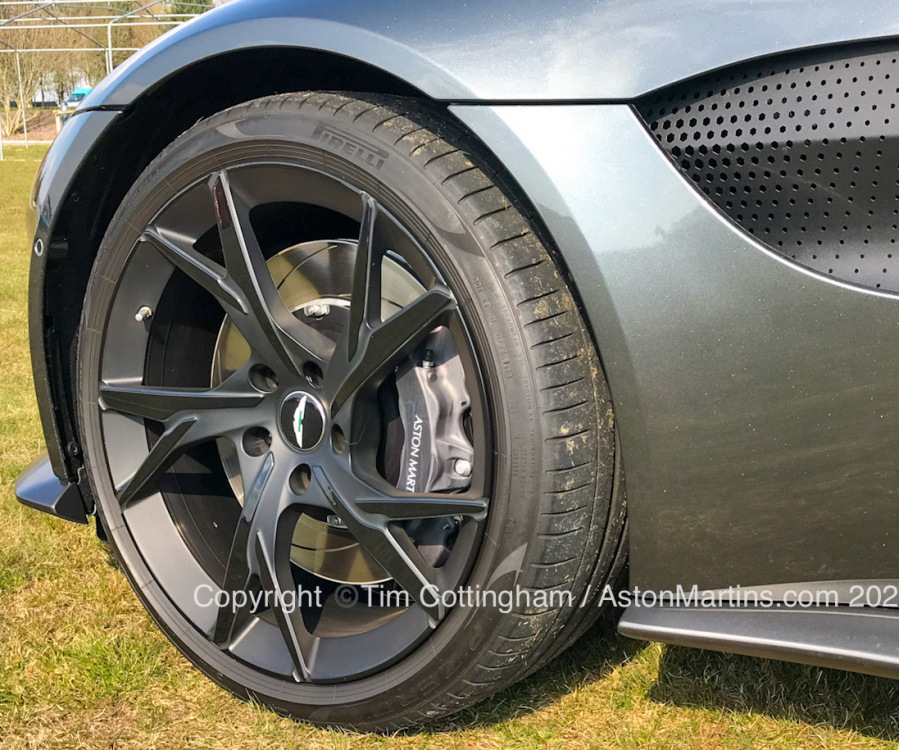

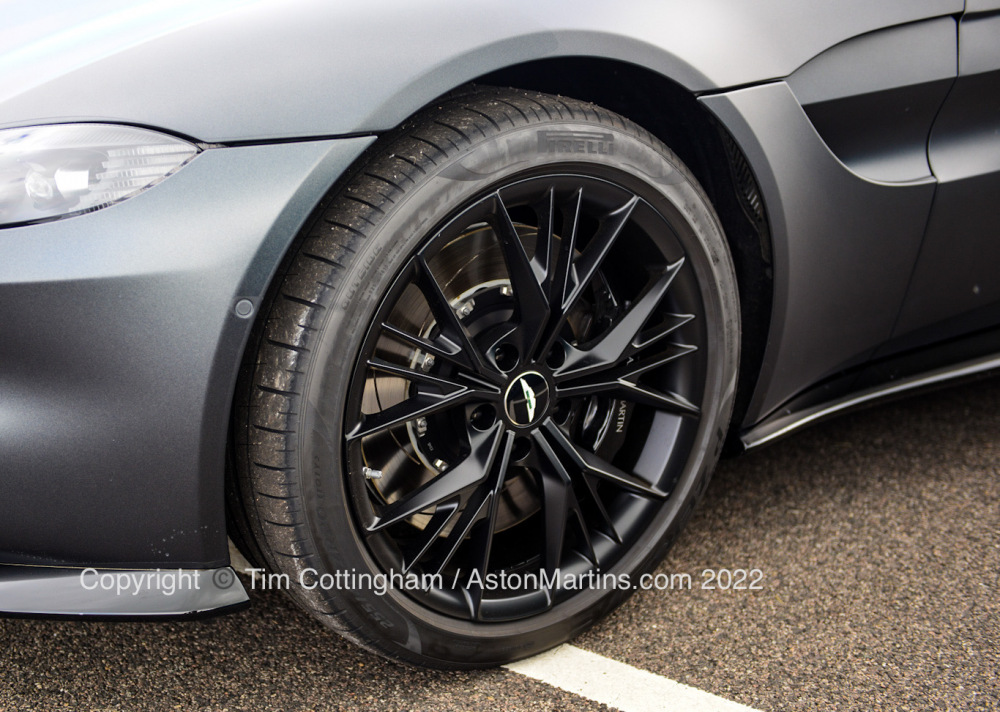

    • 20″ Vantage ‘Y’ Spoke Wheels – Silver
    • Front 20″ Pirelli P Zero 255/40/20
    • Rear 20″ Pirelli P Zero 295/35/20



  • Suspension:
    • Front independent double wishbone design coil springs, anti-roll bar and adaptive damping
    • Rear multi-link, coil springs, anti-roll bar and adaptive damping
    • Adaptive Damping System (ADS) with Skyhook technology modes Sport, Sport + and Track



  • Brakes:
    • Front ventilated two-piece steel brake discs 400 mm diameter
    • Rear ventilated co-cast brake discs 360 mm diameter
    • Electric park brake
    • Dynamic Stability Control (DSC)
    • Anti-lock braking system (ABS)
    • Electronic Brakeforce Distribution (EBD)
    • Emergency Brake Assist (EBA)
    • Traction Control (TC)
    • Hydraulic Brake Assist (HBA)
    • Positive Torque Control (PTC)
    • Dynamic Torque Vectoring (DTV)



  • Dimensions:
    • Length – 4465 mm
    • Width (incl Mirror Caps) – 2153 mm
    • Width (excl Mirror Caps) – 1942 mm
    • Height – 1273 mm
    • Wheelbase – 2704 mm
    • Fuel tank capacity – 73 litres
    • Min Dry Weight – 1530 kg (inclusive of lightweight options)
    • Weight Distribution – 50:50



  • Performance:
    • Acceleration: 0-62mph (0-100km/h) in 3.6 seconds
    • Maximum speed: 195 mph (314 kph)
