One-77 (Production)

One-77 (Production)

(2011 - 2012)

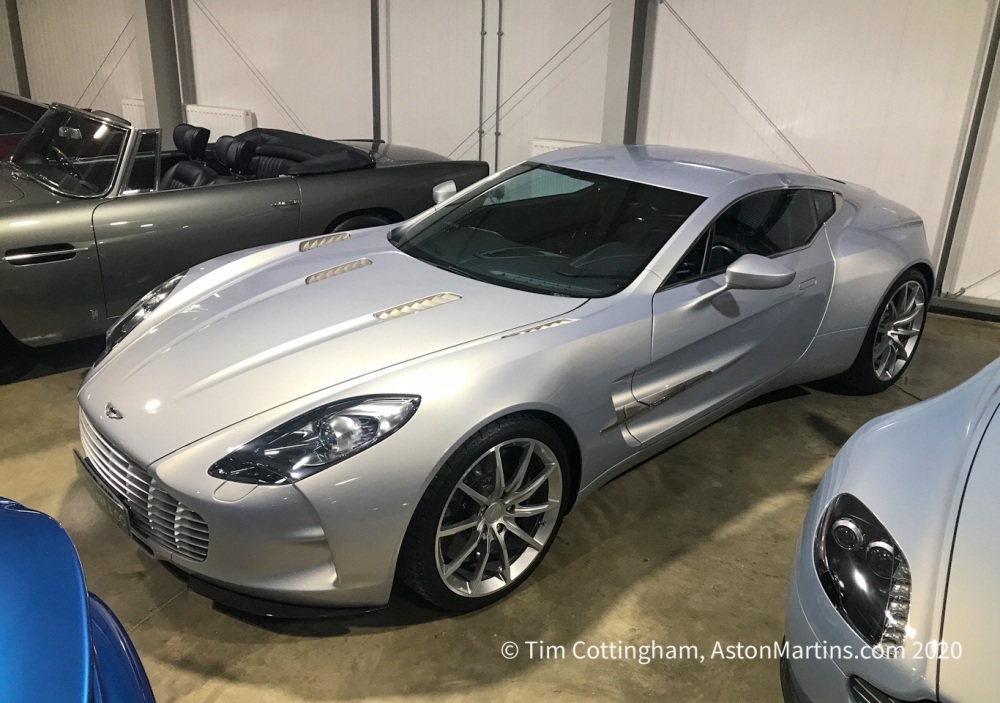

The One-77 has been a huge leap forward for the marque, no Aston has ever pushed the envelope quite so much as this car has. AML have looked for inspiration to the German DTM racecars in order to see to most technically advanced front engined, rear drive machines in existence today. The structure of the car is an immensely rigid lightweight carbon fibre monocoque, conceived and designed at Aston Martin’s Gaydon HQ but built in partnership with Multimatic (MTC), a world leader in carbonfibre technology.

One-77 (Production)

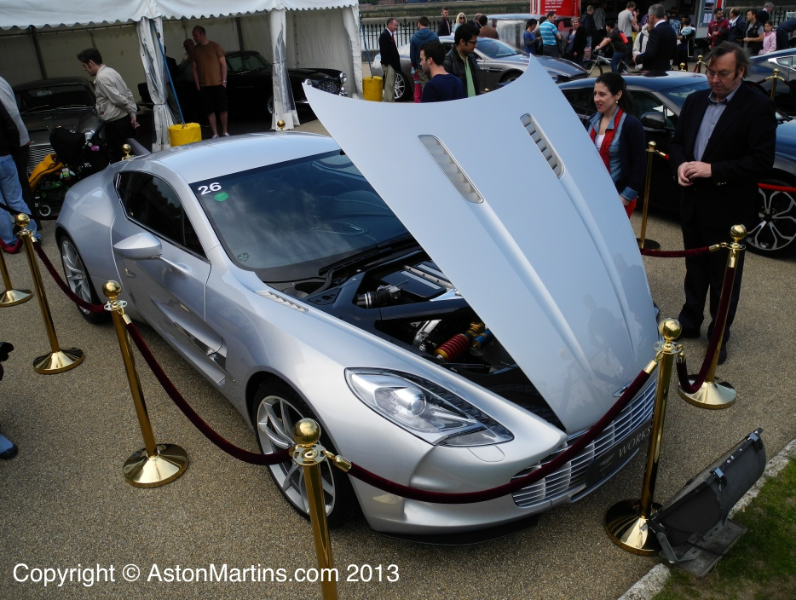

The seamless body is to be made up of classic hand-crafted rolled aluminium panels as we were used to seeing back in the day at Newport Pagnell. The V12 has been taken to it’s limit – 7.3 litres with 750 bhp. Whilst based on the standard V12, virtually no components are shared with the 5.9 litre example. The engine, developed in partnership with Cosworth, is much modified, the weight has been reduced by an almost unbelievable 25%. The V12 is fitted almost 26cm behind the front wheel centreline, the most extreme example of front-mid engined mounting on an Aston ever. All that power is transmitted to the rear wheels by a new generation of Aston Martin’s familiar 6 speed robotised sequential manual. Brakes are lightweight Carbon Ceramic Matrix of course behind 20 inch forged alloy wheels. Employing the classic formula of double wishbones front and rear, the One-77 features inboard suspension front and rear which transfers vertical suspension movements to the horizontally mounted spring/damper units as seen in racecars. The performance of the One-77 has made it the fastest roadgoing AM ever – tested to 220mph and 0-60 in 3.5 seconds. Most incredible is the kerb weight of just 1627 kg, for comparison, the stripped out V8 Vantage N24 weighs 1350 kg, a 310 Vanquish, 1739 kg.

However great the leap made with One-77, the car was massively eclipsed by the announcement of the Formula 1 inspired Valkyrie in 2016.

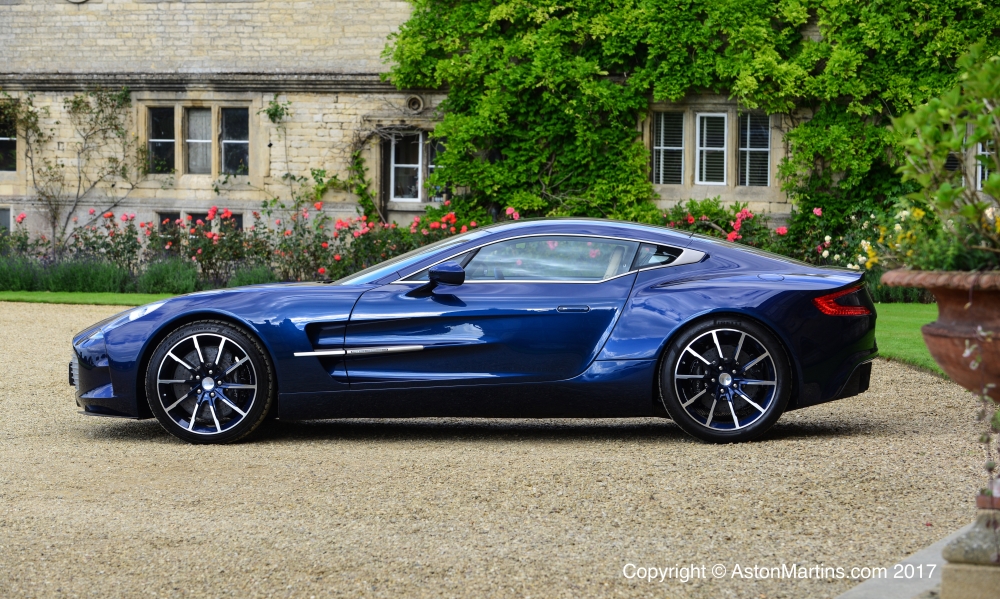

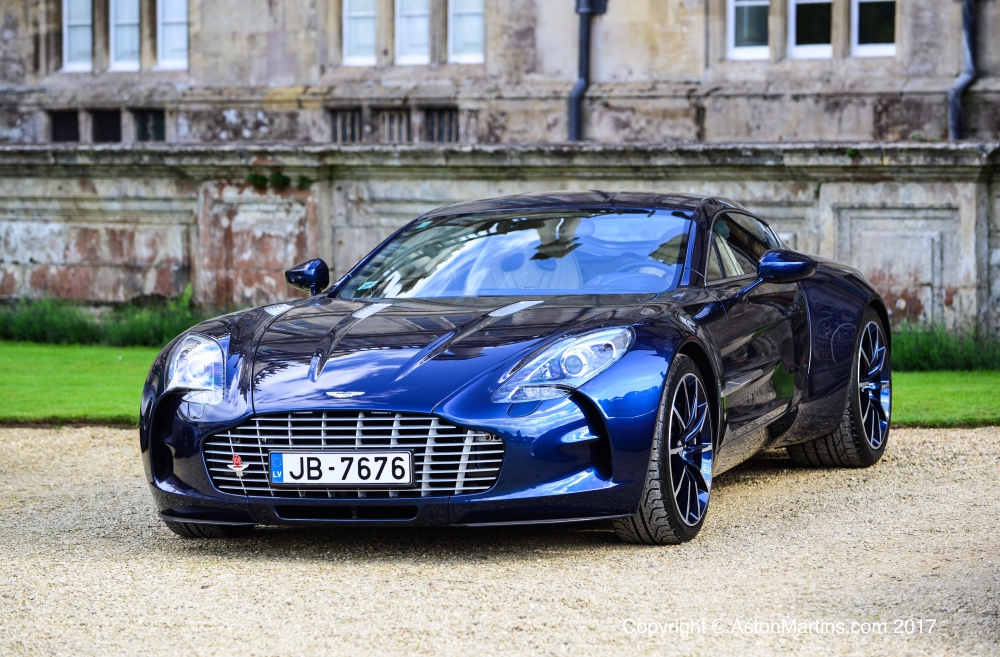

  • Body/Coachwork:
    • Two-seat, two-door coupe
    • Carbon fibre monocoque structure
    • Hand crafted aluminium body panels
    • Single bi-xenon headlamps with integrated LED side lights and direction indicators
    • Carbon fibre front splitters

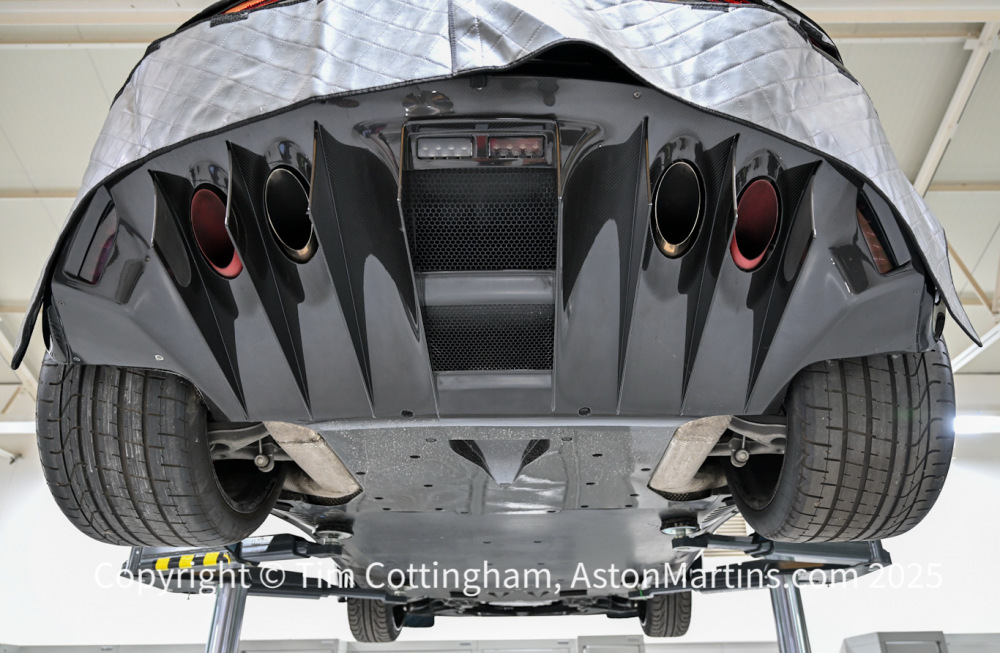

    • Carbon fibre rear diffuser with integrated transaxle cooler
    • LED rear lamps (fog and reverse)

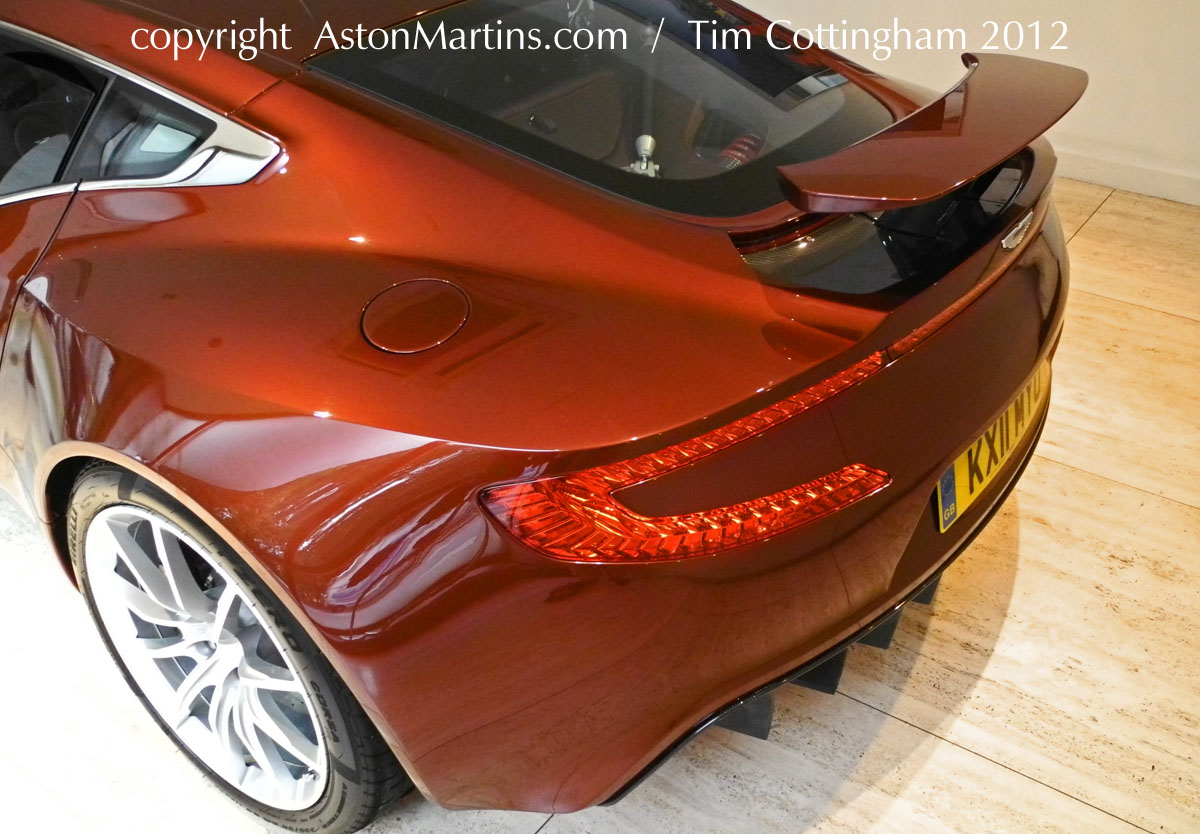

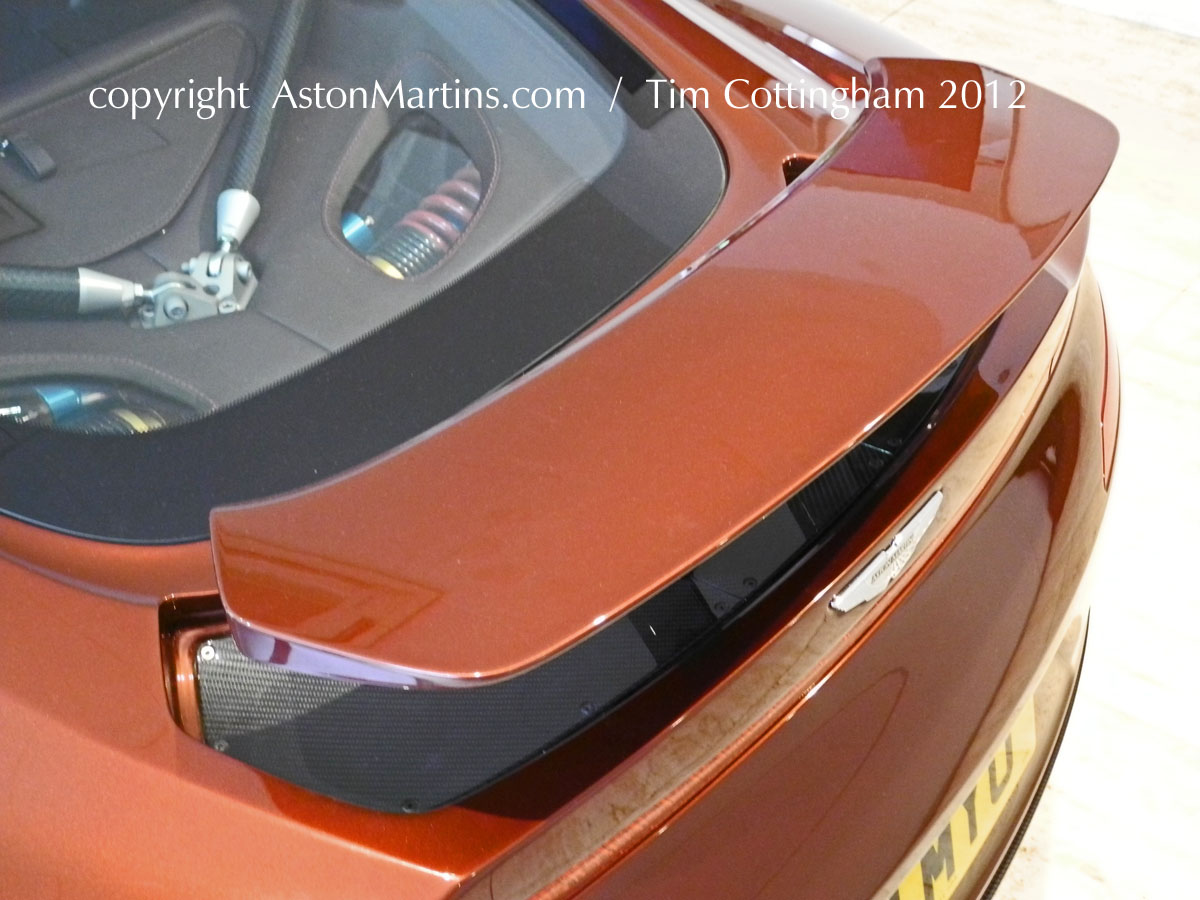

    • Active aerodynamics with deployable spoiler

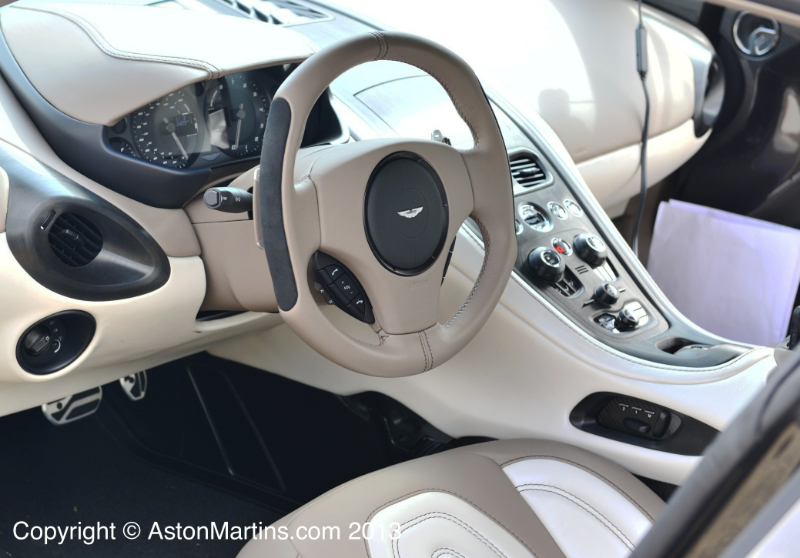

  • Interior:
    • Leather-trimmed sports steering wheel
    • Electrically adjustable lightweight memory seats

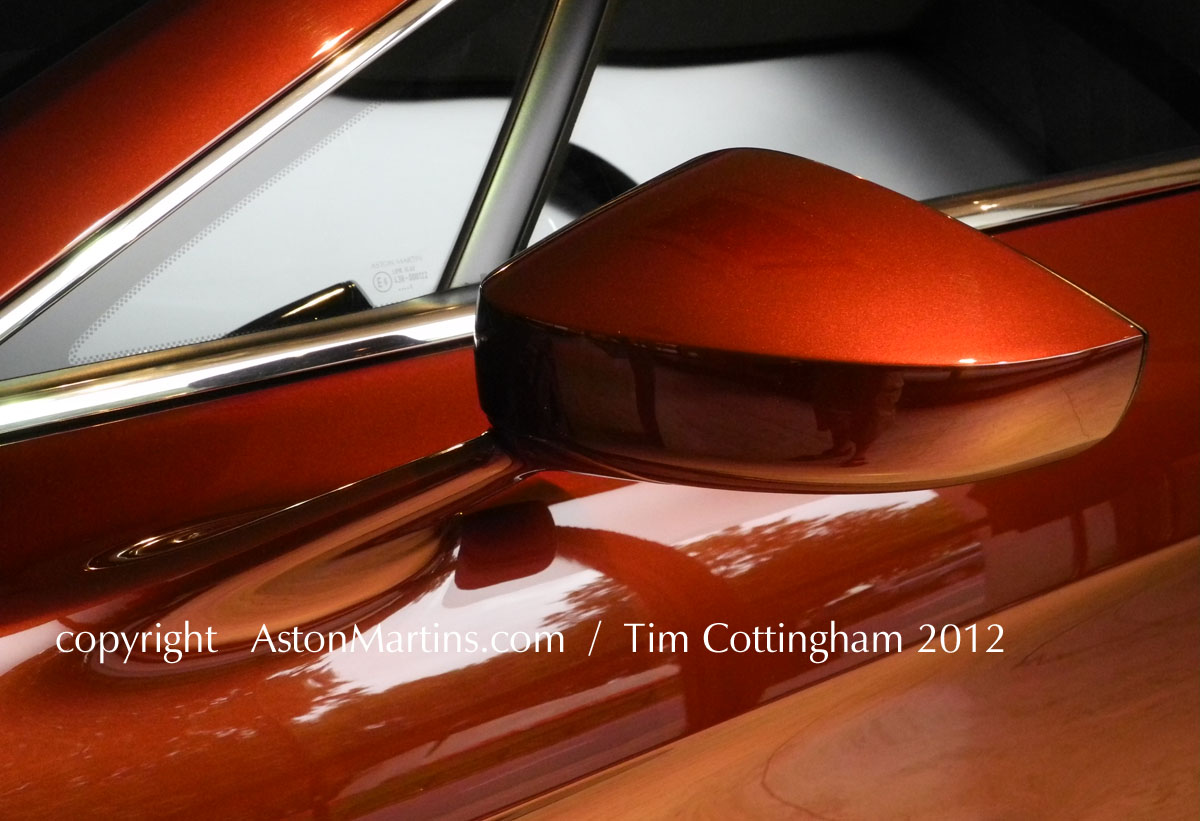

    • Powerfold exterior memory mirrors
    • Dual-stage driver/passenger front airbags
    • Automatic temperature control
    • Trip computer
    • Glass ECU and switches
    • LED map-reading touch sensitive lights
    • Front/rear parking cameras (option



  • Engine:
    • Alloy quad overhead camshaft, 48-valve, 7312 cc V12
    • Front mid-mounted engine, rear-wheel drive
    • Fully catalysed stainless steel lightweight sports exhaust system with active bypass valves
    • Compression ratio 10.9:1
    • Max power 559 kW (750 bhp/760 PS)
    • Max torque 750 Nm



  • Transmission:
    • Rear mid-mounted, six-speed automated manual gearbox with auto shift manual/select shift manual (ASM/SSM) electric hydraulic control system
    • Magnesium alloy torque tube with carbon fibre propeller shaft
    • Limited-slip differential
    • Final drive ratio 3.538



  • Steering:
    • Rack and pinion, power-assisted steering, 3.0 turns lock-to-lock
    • Column tilt and reach adjustment



  • Wheels and tyres:

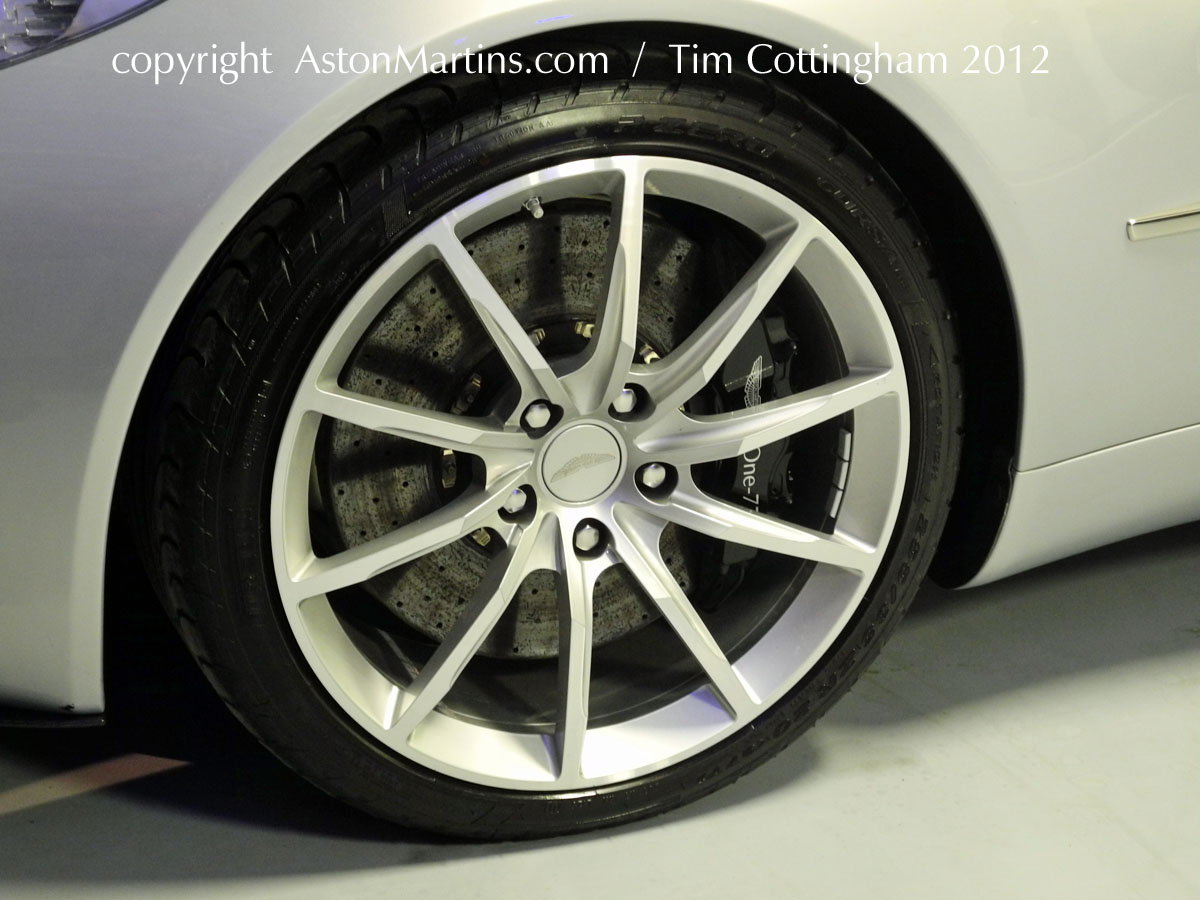

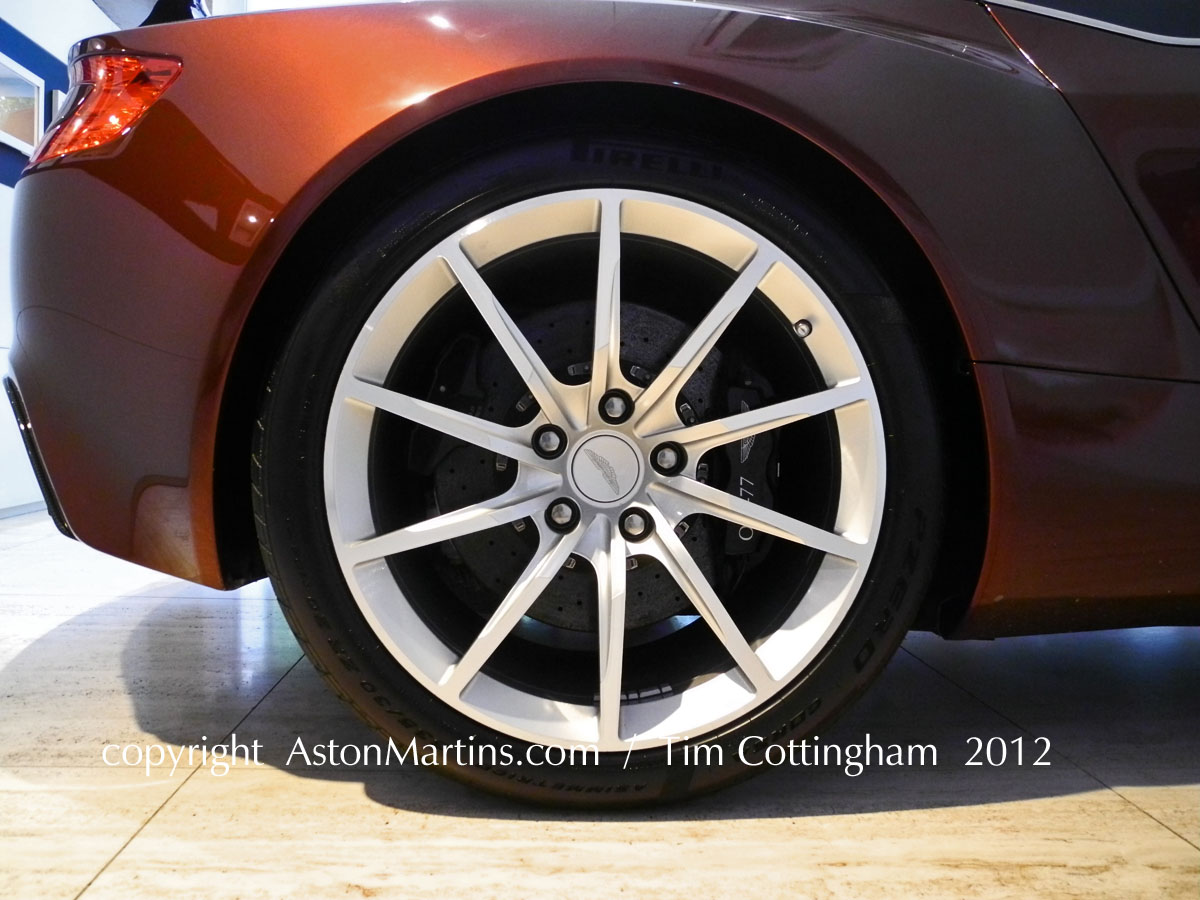

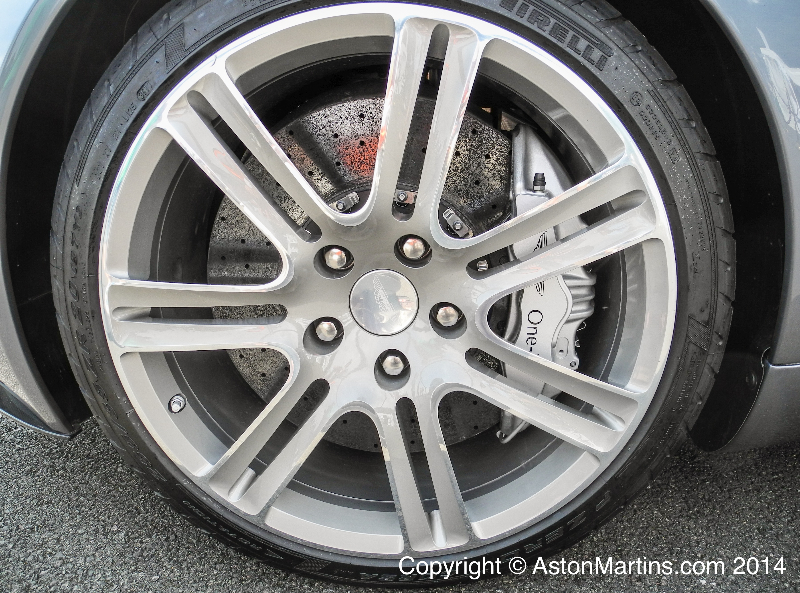

    • 20″ forged alloy wheels – 7 or 10-spoke – bespoke finishes
    • Front Pirelli P Zero Corsa 255/35 ZR20 • Rear Pirelli P Zero Corsa 335/30 ZR20



  • Suspension:

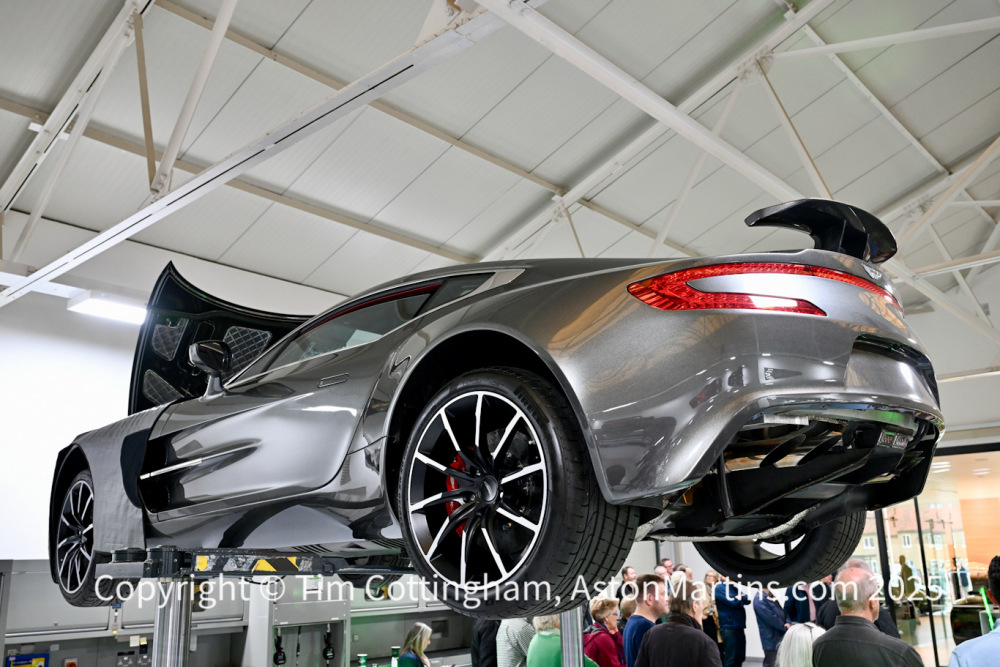

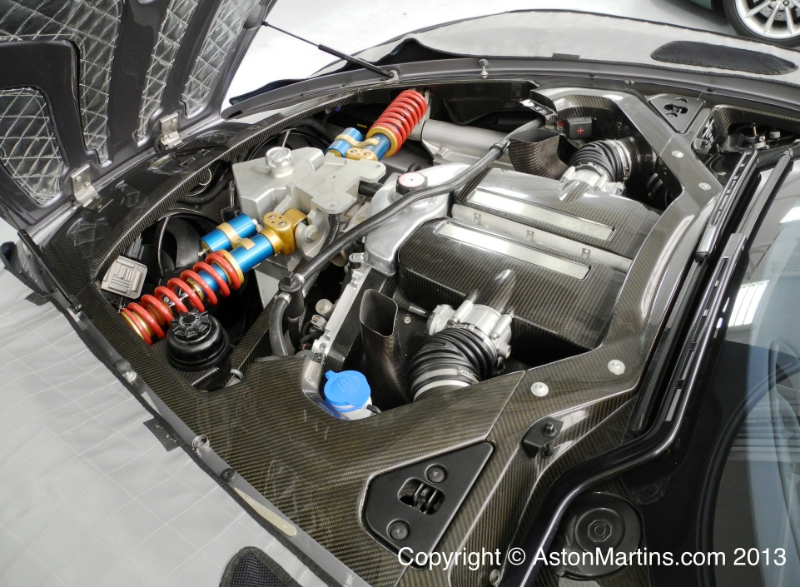

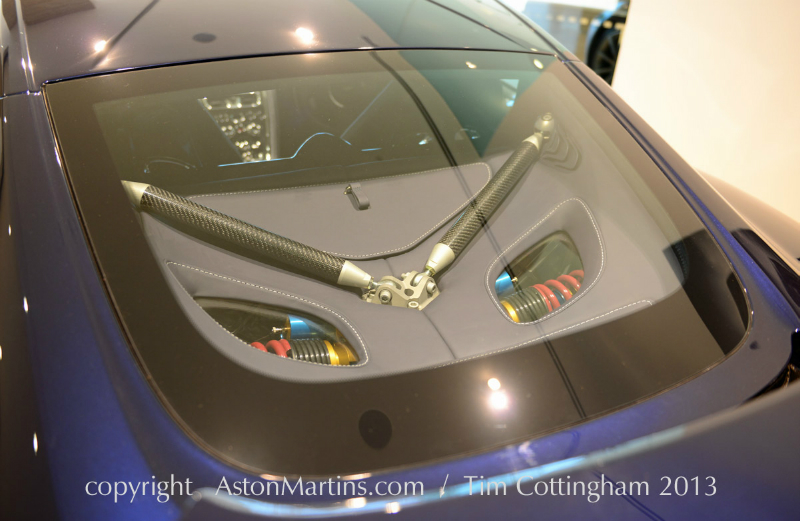

    • Front independent double wishbone suspension incorporating anti-dive geometry, anti-roll bar, pushrod actuated coil springs and adjustable bump and rebound monotube dampers, electrically adjustable for ride height and rate change
    • Rear independent double wishbone suspension incorporating anti-squat and anti-lift geometry, anti-roll bar, pushrod actuated coil springs and adjustable bump and rebound monotube dampers, electrically adjustable for ride height and rate change



  • Brakes:
    • Front ventilated carbon ceramic discs, 398 mm diameter with six-piston calipers
    • Rear ventilated carbon ceramic discs, 360 mm diameter with four-piston calipers
    • Dynamic Stability Control (DSC) • Anti-lock Braking System (ABS)
    • Electronic Brakeforce Distribution (EBD)
    • Emergency Brake Assist (EBA)
    • Traction control



  • Dimensions:
    • Length: 4607 mm
    • Width: 1999 mm excluding wing mirrors
    • Height: 1224 mm
    • Wheelbase: ? mm
    • Front Track: 1706 mm
    • Rear Track: 1706 mm
    • Kerb Weight: 1627 kg
    • Fuel Tank Capacity: 88 litres
  • Performance:
    • Top Speed: 220 mph
    • Acceleration: 0-62mph, 3.5 seconds
    • Power to weight ratio 460 bhp / tonne
    • CO2 Emissions, 572 g/km
  • Price at launch:
    • £1,200,000 (plus local taxes)
