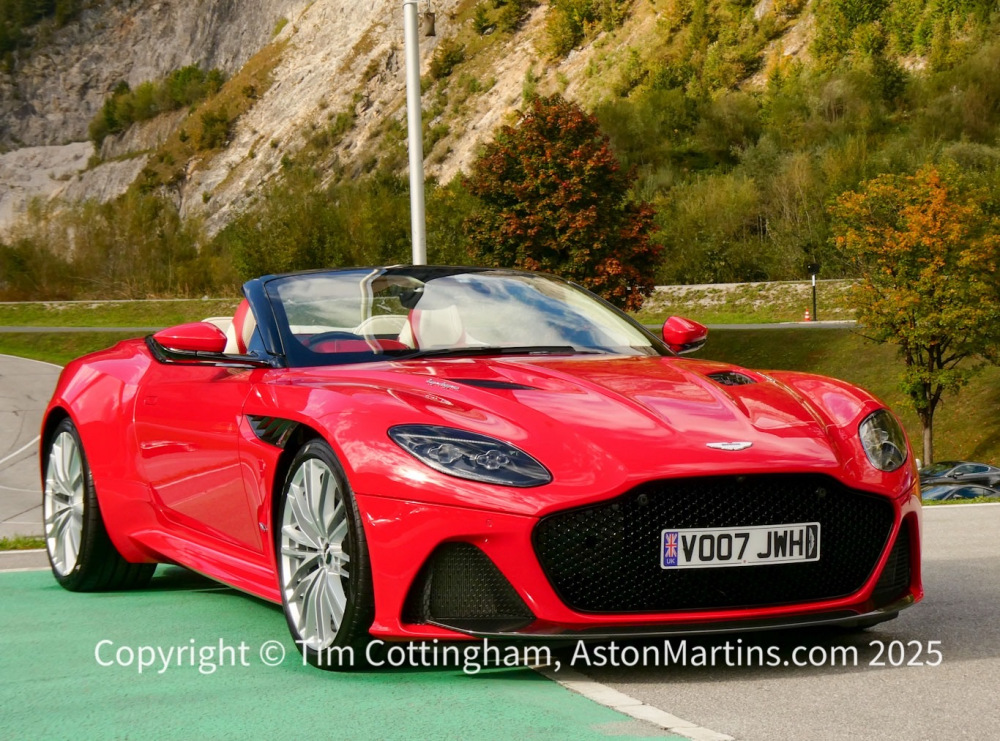

DBS Superleggera Volante
- Body/Coachwork:
Two-door body style 2+2 seating
Extruded bonded aluminium body structure with composite panels
LED high and low beam headlamps with integrated direction indicator, daytime running lights, position lamp, lock/unlock graphic theatre
Signature LED tail lamp with stop tail and dynamic indicator functions

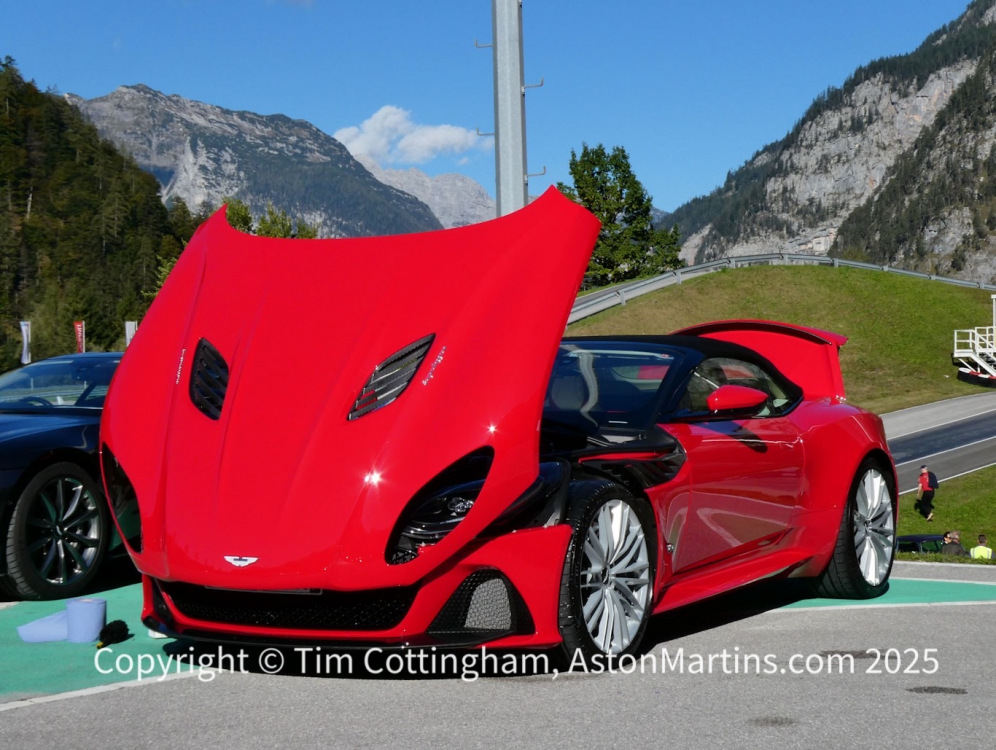

Clamshell bonnet
Side louvre
Aeroblade II™
Quad exhaust with Matte Black finisher

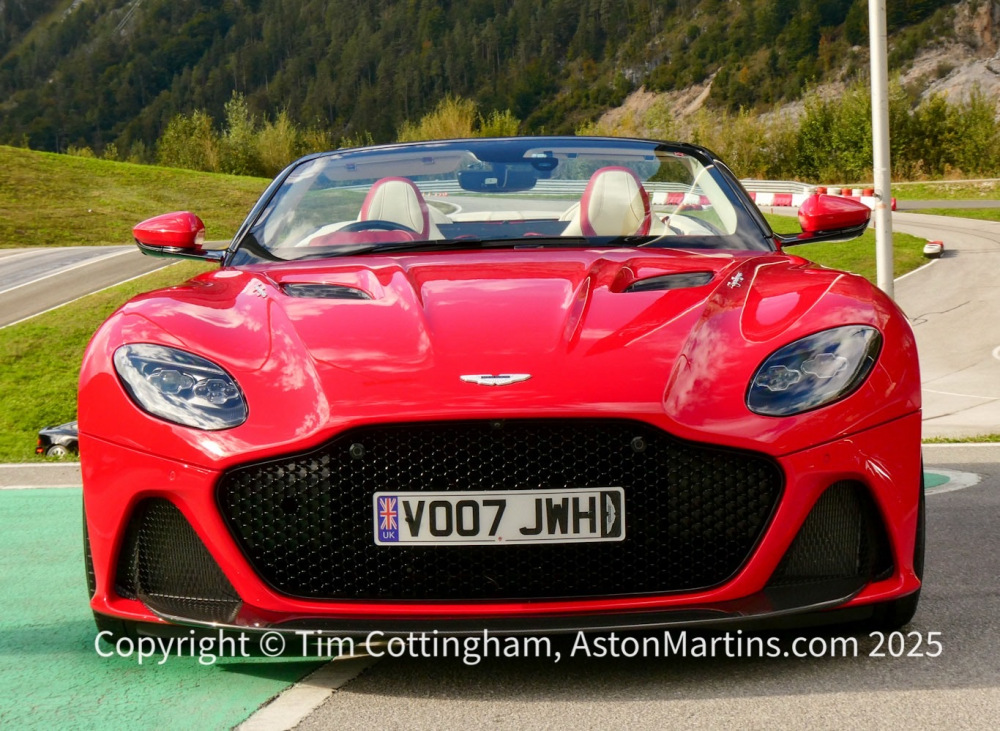

Black front grille
Matte Black window surround finisher
Black underbonnet cross brace
Automatic temperature control with dual zone climate control
Keyless entry with Remote-control central door locking and boot release
Front and rear parking sensors
360-degree camera
Tyre pressure monitoring
Alarm and immobiliser
Powerfold exterior heated mirrors

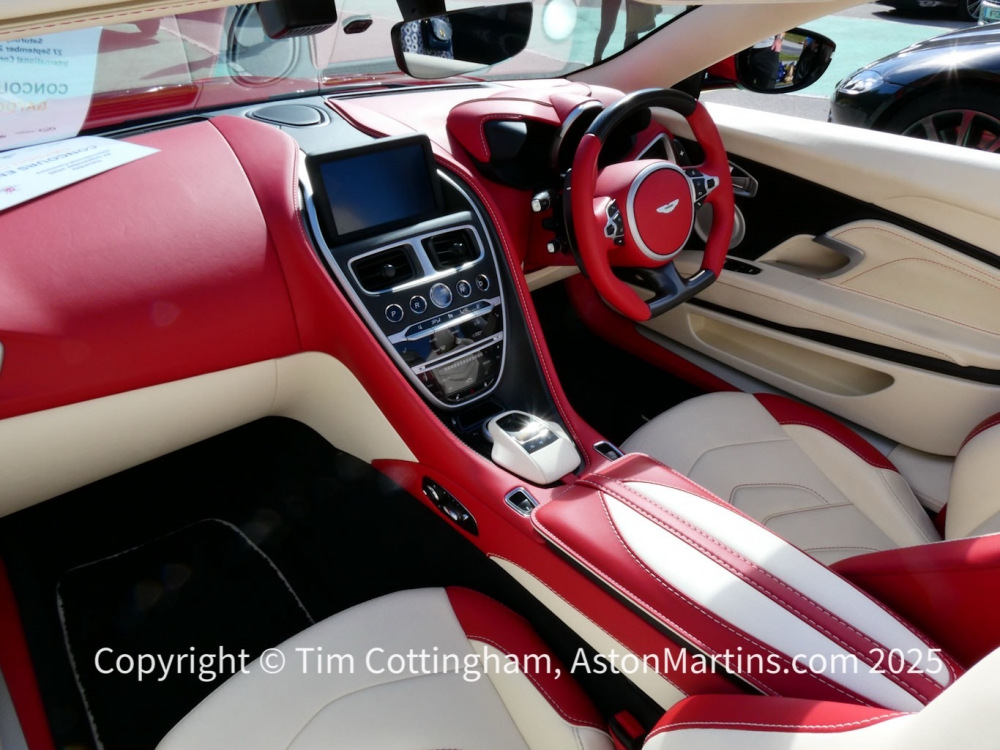

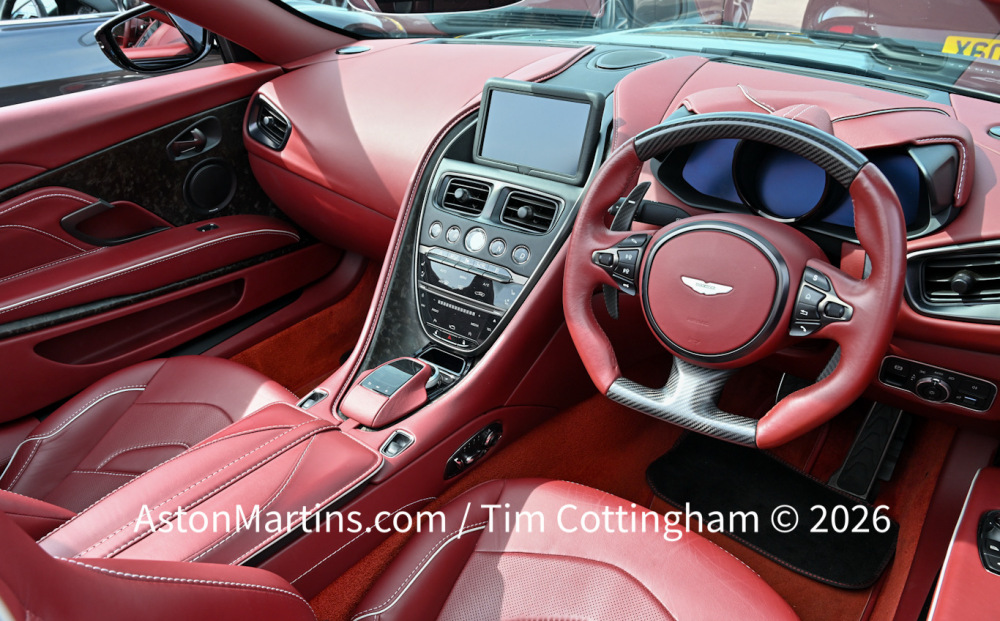

- Interior:
Memory front seats and exterior mirrors (three memory positions)
Electrically adjustable front seats with side airbags
Dual stage driver and passenger front airbags
Curtain side and knee head airbags
Pelvis and Thorax seat mounted airbags
Heated rear screen
Side mirror tilt down on reverse
Floor mats
Auto Parking (Parallel and Bay)
Blind Spot Detection
Trip computer
Electronic Instrument Cluster with mode specific displays
Cruise control & speed limiter
Wind Deflector
Aston Martin premium audio system
8.0″ LCD Screen
iPod® and iPhone® integration and USB playback
DAB and AM/FM radio
A2DP Bluetooth® audio and phone streaming
Integrated satellite navigation system
- Engine:
All-alloy quad overhead cam, 48 valve, 5.2 litre bi-turbo, V12 with stop/start cylinder de-activation
Water- to-air Charge Cooling
Front mid-mounted engine, rear-wheel drive
Fully catalysed stainless – steel exhaust system with cross pipes
Compression ratio 9.3:1
Dual Variable Camshaft Timing
Knock- sensing
Fully CNC machined combustion chambers
Electrically controlled exhaust
Maximum power: 715bhp at 6500rpm
Maximum torque: 900Nm from 1800-5000rpm
- Transmission:
Rear mid-mounted ZF eight-speed automatic transmission
Alloy torque tube with Carbon Fibre propeller shaft
Final drive ratio 2.93:1
- Steering:
Electric power assisted steering rack with 13.09:1 steering ratio
Speed-dependent rack and pinion power-assisted steering, 2.4 turns lock-to-lock
- Wheels and tyres:
Front 21″ Pirelli P Zero 265/35/21
Rear 21″ Pirelli P Zero 305/30/21
- Suspension:
Front independent double wishbone design coil springs, anti – roll bar and adaptive damping
Rear multi – link, coil springs, anti – roll bar and adaptive damping
Adaptive Damping System (ADS) with Skyhook technology modes GT, Sport and Sport Plus
- Brakes:
Front ventilated carbon ceramic brake discs – 410 mm diameter
Rear ventilated carbon ceramic brake discs – 360 mm diameter
Electric park brake
Dynamic Stability Control (DSC)
Anti – lock braking system (ABS)
Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Traction Control (TC)
Hydraulic Brake Assist (HBA)
Positive Torque Control (PTC)
Dynamic Torque Vectoring (DTV)
- Dimensions:
Length: 4712 mm
Width: 2146 mm (including door mirrors)
Rear width: 1968 mm (excluding door mirrors)
Front width: 1942 mm (excluding door mirrors)
Height Coupe: 1280 mm
Height Volante: 1295 mm
Wheelbase: 2805 mm
Front overhang: 915 mm
Rear overhang: 995 mm
Ground clearance: 120 mm (excluding air dam)
Ground clearance: 90 mm (including air dam)
Front track: 1665 mm
Rear track: 1645 mm
Angle of approach: 9.5 (degrees)
Angle of departure: 13 (degrees)
Turning circle: 12.4 m
- Performance:
Acceleration: 0 -62mph (0-100km/h) in 3.4 seconds
Maximum Speed: 211 mph
