 (Series 4) (1987 - 1990)

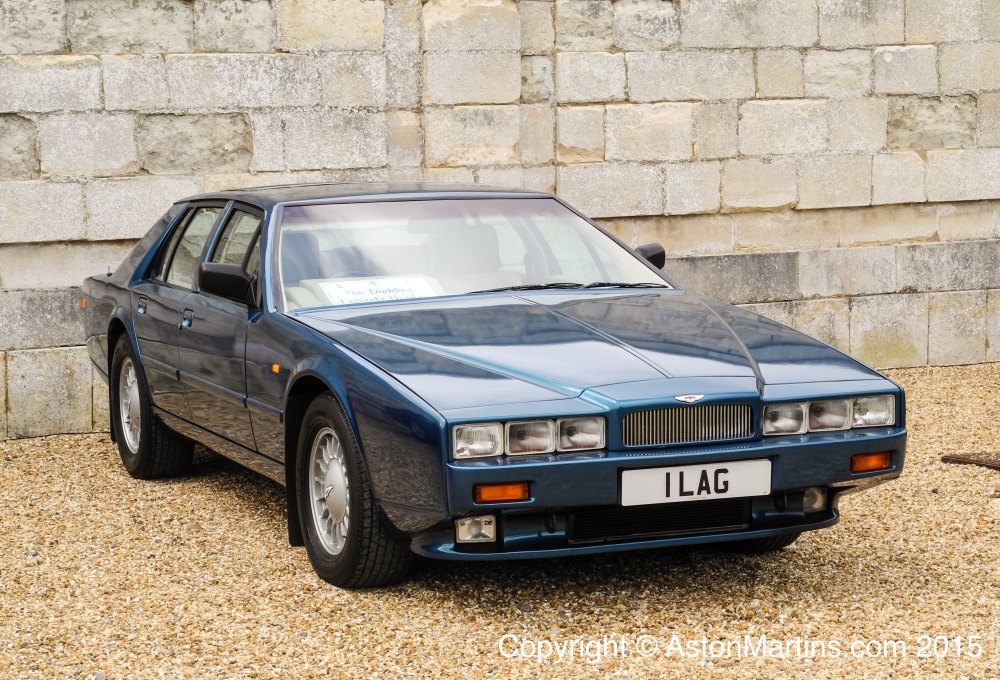

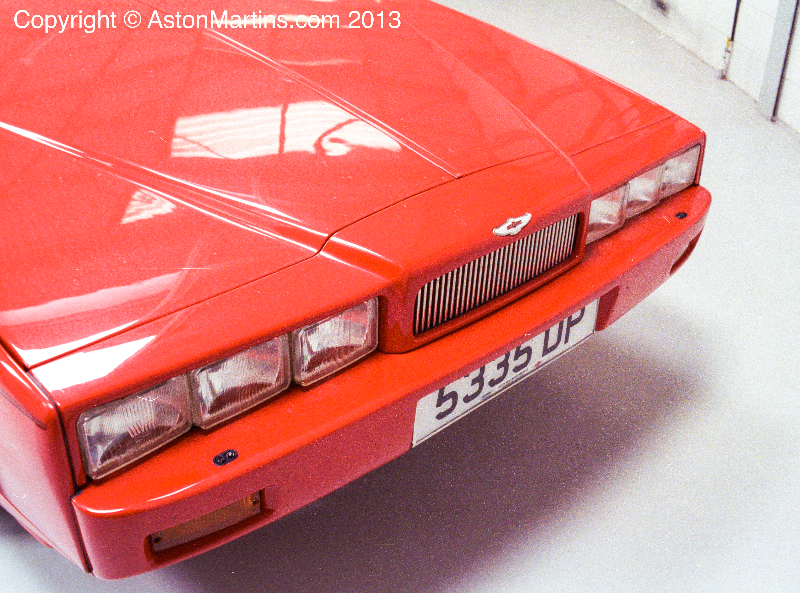

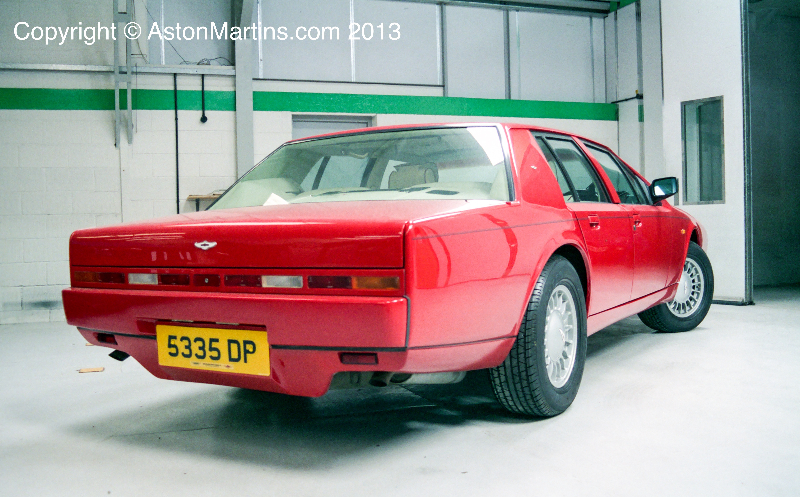

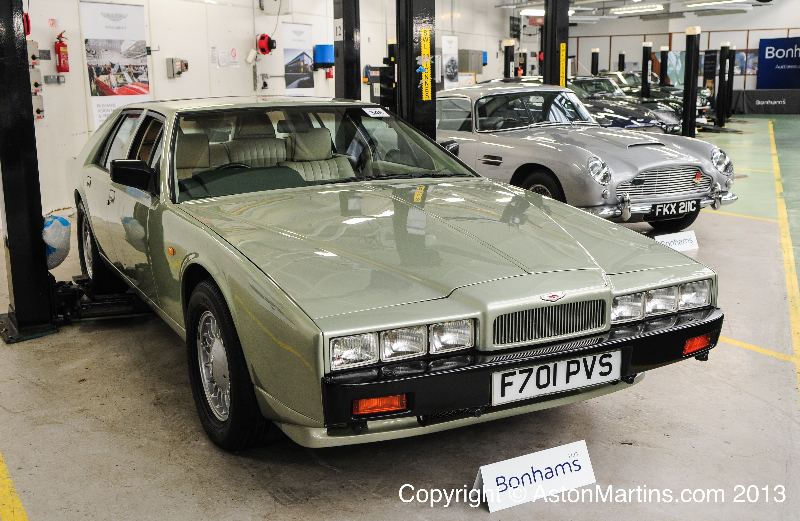

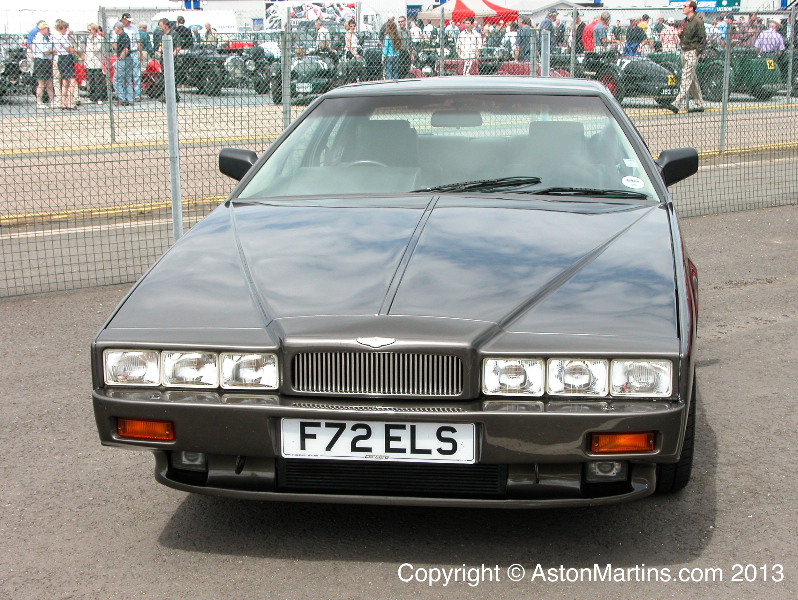

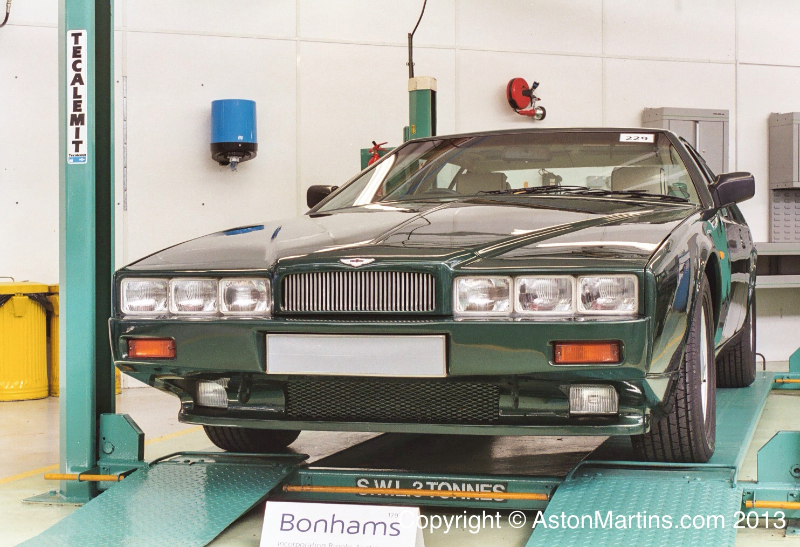

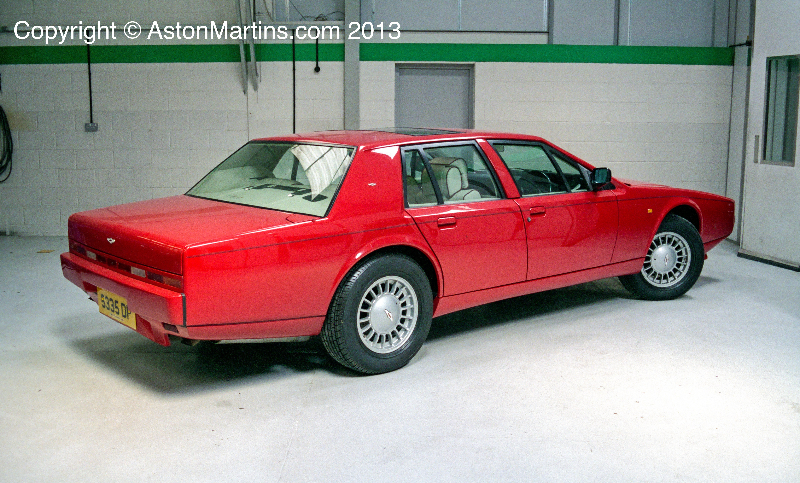

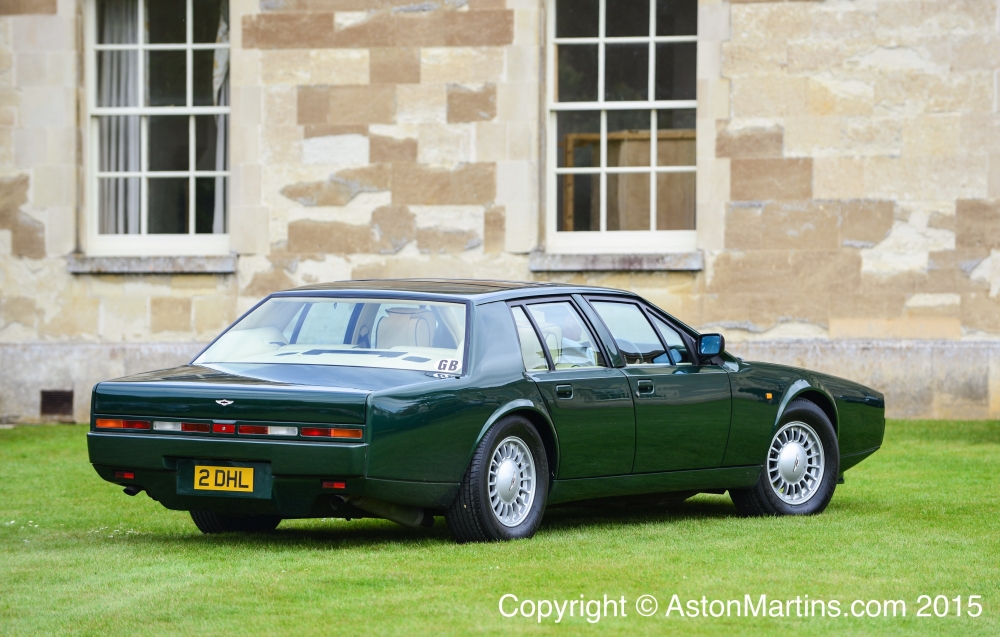

William Towns came back to AML to give the Lagonda a 'make over' in order to get just a few more sales out of the old girl before she was honourably retired. The lines were softened, the pop-up headlights were ditched and six fixed headlamps replaced the driving lamps, the waist level trim was lost - but mostly, the sharpness was gone.

Lagonda Series 4

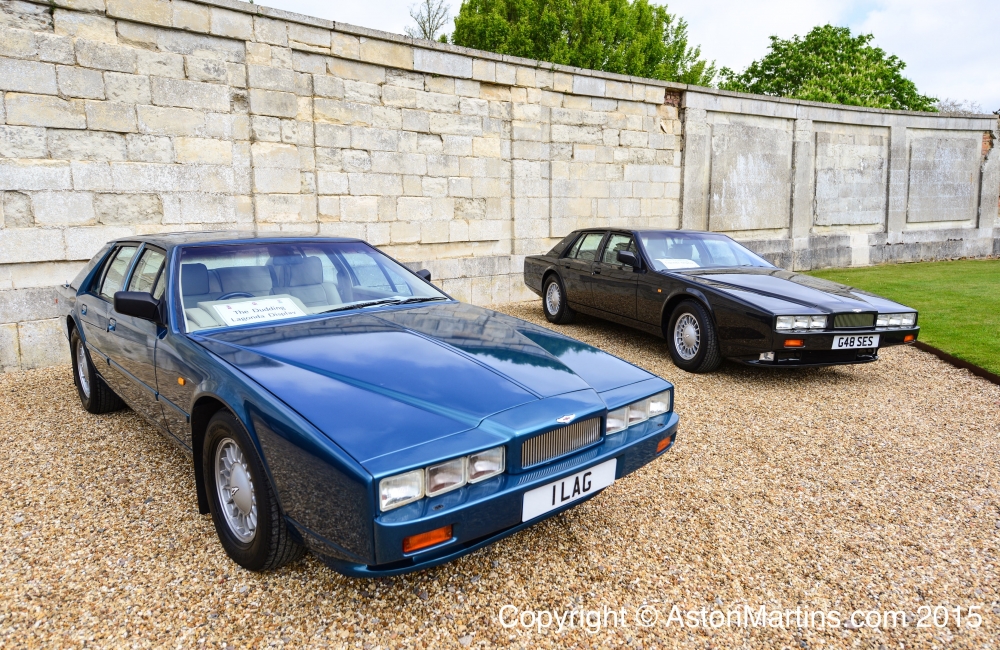

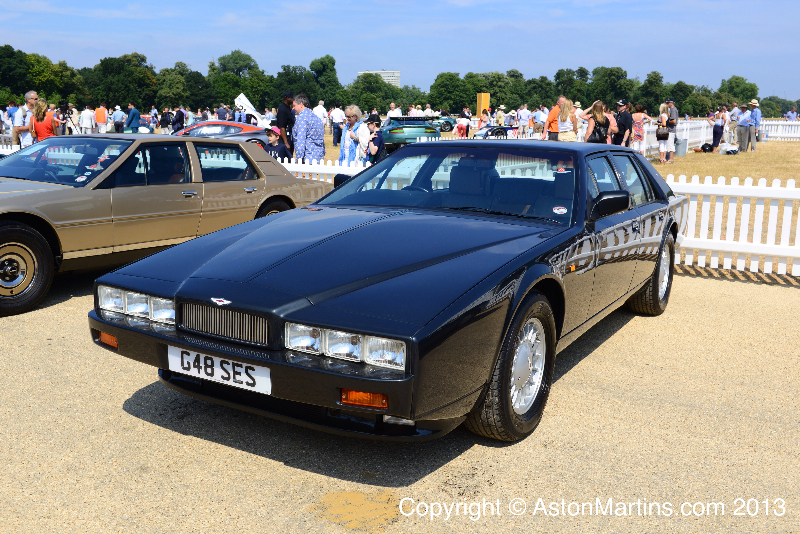

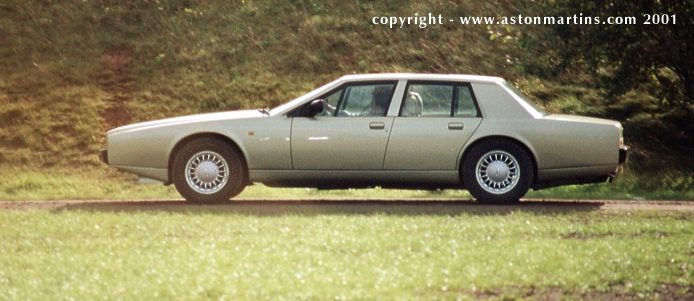

Lagonda’s are rare cars with a total of just 643 examples being built over 12 years. With perhaps 80 examples remaining in the UK, this photograph of both a series 4 and an early series 2 together is a great rarity. The basic lines are the same although the latter car has considerably more weight in the styling.

With production virtually stable at one car a week, production lasted for just 105 examples, ending in January 1990, with a global recession looming limiting demand for hyper expensive sports saloons.

The Lagonda marque remained virtually dormant for 25 years. There were a small number of coach built specials and concepts such as the AML Works service made Virage based 4 and 5 door specials, and the exceptionally beautiful Ghia designed Lagonda Vignale concept car. The Gaydon era Lagondas had something of a false start with the Concept LUV in 2009 until AML announced the Lagonda Taraf, a car that owes its styling to the 1980’s wedge.

 For more information and advice about Lagonda’s – please visit LagondaNet

  • Body/Coachwork:
    • 4 door, 4 seater saloon
    • Steel platform chassis with handcrafted aluminium alloy body panels
    • Four quartz halogen headlamps, two spot lamps and two under bumper fog lamps

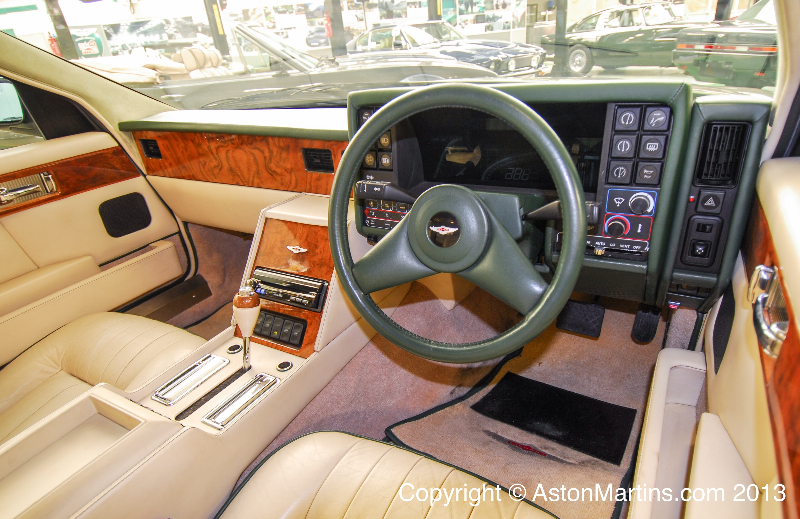

  • Interior:
    • Full Connolly leather interior including headlining
    • Full air conditioning to front, seporatly controlled cool air conditioning to rear
    • Vacuum-flourescent integrated instrument pack
    • Blaupunkt New York or Memphis SQR 88 stereo radio cassette with 4 speakers, automatic rear wing aerial
  • Engine:
    • Front mounted all-alloy 90° V8, 5,340 cc, two-valves-per cylinder, twin overhead camshafts per bank.
    • Engine number prefix V585/ Bore 100 mm. Stroke 85 mm. Compression ratio 9.35 : 1, 8.0 : 1 (Emission Control LFA)
    • Weber-Marelli electronic fuel injection
    • Maximum power: 289 bhp @ 5,500 rpm (200 +/- bhp on Emission Control LFA)
    • Maximum torque: 321 lb.ft @ 3,000 rpm
    • Air Injection System: AC Delco air pump, two from 1988
    • Four catalytic convertors on Emission Control LFM & LFA
  • Transmission:
    • Automatic :Chrysler Torqueflite 3 speed automatic, no manual option
    • Final drive: Salisbury hypoid bevel with Powr-Lok limited slip differential. Final drive ratio: 3.058 : 1, 3.54 : 1 for Emission Control LFA cars
  • Steering:
    • Power assisted rack and pinion, 2 turns lock to lock
    • Turning circle 11.58m
  • Wheels and tyres:

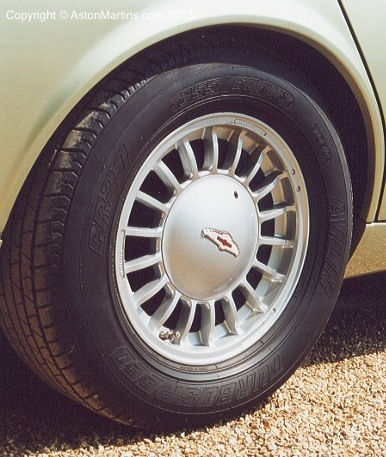

    • Bolt-on, alloy 7JK x 16 Wolfrace alloy wheels
    • Avon Turbospeed CR27 255/60 VR16 tyres (ZR16 from April 1988)
  • Suspension:
    • Front: Independent, featuring unequal transverse wishbones, coil springs and co-axial telescopic shock absorbers with an anti-roll bar
    • Rear: De-Dion tube, Watts linkage and trailing links. Self-lebelling by pressuried co-axial spring shock absorber units
  • Brakes:
    • Front: Ventilated steel discs, 273 mm diameter
    • Rear: Ventilated steel discs, 264 mm diameter Tandem master cylinders with integral servo
  • Dimensions:
    • Length: 5,283 mm
    • Width: 1,816 mm
    • Height: 1,320 mm
    • Kerb Weight: 2,064 kg
    • Wheelbase: 2,911 mm
    • Front track: 1,530 mm
    • Rear track: 1,562 mm
    • Fuel tank capacity: 104.6 litres + reserve
  • Performance:
    • Acceleration: 0-60 mph 8.8 seconds
    • Acceleration: 0-100 mph 20.5 seconds
    • Maximum speed: 143 mph
  • Price at launch:



    • March 1987: £87,500
    • October 1987: £87,500. ($177,500 USA)
    • March 1988: £89,500. ($187,500 USA)
    • September 1988: £98,000. ($187,500 USA)
    • February 1989: £110,000. ($197,000 USA)
    • August 1989: £120,000. ($197,000 USA)
